Home » Products » Embedded IoT Solutions » SoMs & Dev Kits » Open-Q™ SOMs » Open-Q™ 2200 Series SIP

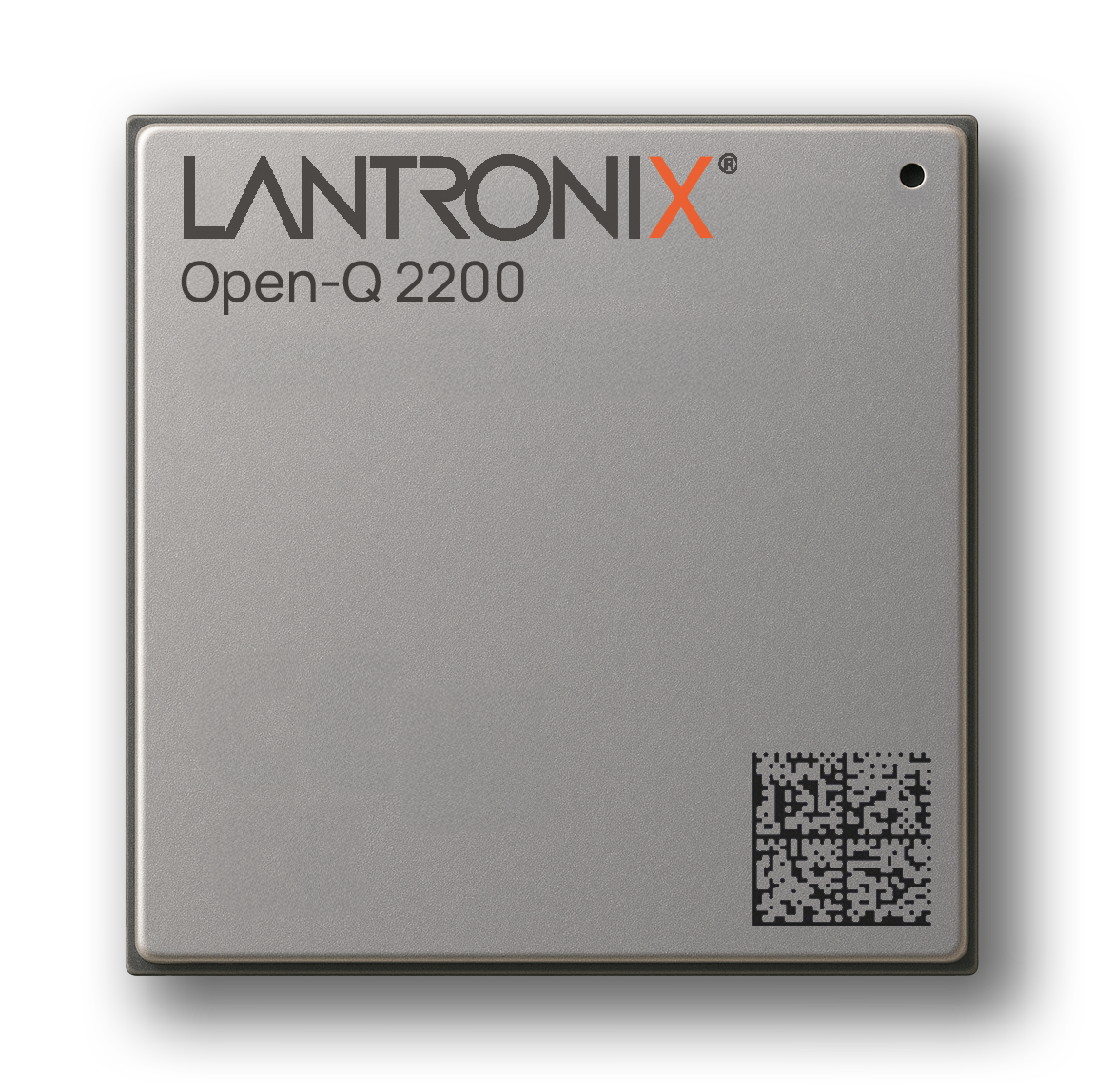

Open-Q™ 2200 Series SIP
New

Open-Q™ 2200 Series SIP (System in Package)

Buy Now

The Open-Q™ 2200 Series SIPs are a cost-effective solution that delivers powerful performance, vivid graphics, dynamic camera capabilities, and a broad range of connectivity options.

The design is based on the Qualcomm® QCS2290 (Android) & QRB2210 (Yocto Linux) processors, with on-board audio codec, 2GB of LPPDR4 memory, 16GB of eMMC, pre-certified Wi-Fi and Bluetooth. It is an entry-tier solution that delivers greater performance, graphic, camera capabilities, and improved power performance. It is a 35 x 35mm LGA package that is ideal for industrial IoT applications such as handhelds, panels, POS/kiosks, vending machines, exercise equipment, and camera applications.

Along with the companion development kit, OS and SDKs, and available accessories, it will accelerate your time to market for innovative new products requiring advanced imaging and computer vision performance in low-cost and low-power embedded situations.

NDAA Compliant

Open-Q™ 2200 Series SIP Overview

  • Customer Benefits

    • Entry-tier solution that delivers greater performance, graphic, camera capabilities, and improved power
      performance.
    • Scalable volume deployment through future ConsoleFlow™ support for device management, zero-touch provisioning
      and OTA updates of functionality and security
    • Secure compute platform
    • Long device life cycle

  • Target Markets

    • Industrial IoT applications including handhelds and panels
    • Camera applications
      POS/kiosk, vending machines, exercise equipment displays
    • Entry-level robotics including warehouse and logistics

Open-Q™ 2200 Series SIP Tech Specs

Product Name Open-Q™ 2200 Series SIP
Processor QCS2290, QRB2210
Memory 2GB LPDDR4
Storage 16GB eMMC
External Storage uSD
Wi-Fi / BT 802.11 a/b/g/n/ac, 1×1; BT 5.0 with WCN3950
Location Support with external GNSS circuitry and WGR7640. Please contact us for more details.
Gen 9, GPS, Glonass, BeiDou, Galileo, QZSS, and SBAS.
NavIC support with WGR7640
Modem None
Display Interfaces One 4-lane; DSI D-PHY 1.2. Split link supported
Adreno 702 at 845 MHz
OpenGL ES 3.1, Vulkan 1.1, OpenCL 2.0
HD+ (1680×720) @ 60 fps
Camera Interfaces 2x 4-lane MIPI CSI
Two cameras: 13 MP +13 MP @ 30fps
One camera: 25MP @ 30fps
Video capabilities 1080p 30 fps encode / 1080p 30fps decode
AI Capability (TOPs)
Audio 4 x DMIC, support for two voice activation engines, integrated low power island for voice activation, supports always-on noise suppression
I/O USB 3.1 Type C, SDIO, UART, SPI, I2C, I3C, GPIO
PCIe None
Battery Charger Yes
Operating Temperature Extended (-25C to 85C)
Form Factor SIP (LGA)
Dimensions 35 x 35 x 2.8mm
Software Android 12 Go, Yocto Linux (Dunfell, 5.4)
Certification FCC, RED

Open-Q™ 2200 Series SIP Part Numbers

Lantronix Part # Name Description Order Now
Sorry, no parts were found that match that search query.
SIP
Lantronix Part #
QC-SIP-2290CS-A
Name
Open-Q™ 2290CS SIP		 Open-Q™ 2290CS SIP (2GB/16GB), Android 12 Go Buy Now
Lantronix Part #
QC-SIP-2210RB-A
Name
Open-Q™ 2210RB SIP		 Open-Q™ 2210RB SIP (2GB/16GB), Yocto Linux (Dunfell, 5.4) Buy Now
Development Kit
Lantronix Part #
QC-DK-AL1
Name
Fully Assembled Development Kit

  • Compatible with Open-Q™ 2290 SIP Series
  • Pre-assembled
  • QC-SIP-CONN-2290CS-A
  • Open-Q™ Main board
  • Open-Q™ Vision Kit with Nav Mezzanine Board, OS05A10 Main Camera and OV9282 Tracking Camera
  • 5.45" TFT LCD, 720 x 1440 dots, touch screen

 Buy Now
Lantronix Part #
QC-DK-RB1
Name
Fully Assembled Development Kit

  • Compatible with Open-Q™ 2210 SIP Series
  • Pre-assembled
  • QC-SIP-CONN-2210RB-A
  • Open-Q dev kit main board
  • Open-Q™ Vision Kit with Nav Mezzanine Board, OS05A10 Main Camera and OV9282 Tracking Camera
  • 5.45" TFT LCD, 720 x 1440 dots, touch screen

 Buy Now
SIP on Interposer Boards
Lantronix Part #
QC-SIP-CONN-2290CS-A
Name
Open-Q™ 2290CS-A SIP on Interposer Board		 Open-Q™ 2290CS-A SIP (2GB/16GB) on Interposer Board with B2B Connectors, Android 12 Go Contact Us
Lantronix Part #
QC-SIP-CONN-2210RB-A
Name
Open-Q™ 2210RB-A SIP on Interposer Board		 Open-Q™ 2210CS-A SIP (2GB/16GB) on Interposer Board with B2B Connectors, Yocto Linux (Dunfell, 5.4) Contact Us
