Home » Products » Connectivity Modules » Serial-to-Ethernet Wired Device Servers » XPort Pro Lx6
XPort Pro Lx6
XPort Pro Lx6 XPort Pro evaluation kit

XPort Pro Lx6
In Production-NRFND

Product Brief

Embedded Linux Networking Server

  • IPv6 Ready Certified: Conforms to core protocols
  • Easy to deploy and use: Simple device setup, configuration and monitoring without any software development
  • Robust: Device server application suite hardened by Lantronix over the last decade
  • Feature Rich: Multiple session connectivity modes, remote firmware upgrades and configuration with enterprise class management interfaces
  • Secure: FIPS 197 compliant 256-bit AES encryption
  • Industrial-Ready: Operating environment at extended temperatures: -40° to +85° C
  • Standards-based: Conforms to the latest IP networking standards ensuring interoperability and eliminating vendor lock-in
  • Guaranteed: 2-year limited warranty

LOGO_ipv6_gold LOGO_linux-pen_s

NDAA Compliant

XPort Pro Lx6 Overview

IPv6 Ready, Linux Networking Module For M2M Application Development

The XPort® Pro Lx6 is a member of Lantronix XPort Pro family of powerful and advanced embedded Linux based networking modules. Footprint compatible with the industry popular XPort®, the XPort Pro Lx6 adds IPv6 — allowing designers to leverage an off-the-shelf solution that’s highly customizable for wired networking solutions.

Robust Processing Power & Flexible Linux Computing

The thumb-sized XPort Pro Lx6 provides everything you need in a single embedded solution — eliminating the complexity of designing network connectivity into a product and allowing advanced applications to be quickly and easily deployed on the edge device itself.

IPv6-Ready Solution

Organizations have historically struggled with future proofing their networking equipment, especially when it comes to supporting Internet Protocol version 6 (IPv6). Until recently, IPv6 was only available in high end computers. Today it’s available on the XPort Pro—one of Lantronix’s flagship, award-winning products. Using Linux and the large collection of available feature libraries, the XPort Pro Lx6 offers a customizable platform for embedded developers to use and offer a highly differentiated networking solution.

Industrial-Grade Device Server

The XPort Pro Lx6 delivers a robust, industrial-grade application device server with network hardened software applications, in conjunction with critical agency certification already completed by Lantronix. The benefit for you? Reduced development time, faster time to market, and lower cost of ownership through the entire product lifecycle.

XPort Pro Lx6 Tech Specs

High Performance 32-bit Processor

  • 16MB SDRAM 16MB Flash

Serial Interface

  • Software selectable data rates from 300 to 921kbps
  • Characters: 7 or 8 data bits
  • Parity: Odd, Even, None
  • Stop Bits: 1 or 2
  • Modem Control Signals: CTS, RTS, DTR/DCD
  • Flow Control: XON/XOFF (software), CTS/RTS (hardware)
  • Programmable IO:3 PIO pins (software selectable)

Network Interface

  • 10Base-T and 100Base-TX Link
  • Connector: RJ45
  • Internet Protocol: Dual Stack IPv4 and IPv6
  • Protocols: TCP/IP, UDP/IP, ARP, ICMP, TFTP, FTP, Telnet, DHCP, BOOTP, HTTP, SMTP, AutoIP, and SYSLOG

Security

  • TCP/AES and UDP/AES

Software

Management and Control

  • Internal Web Manager
  • CLI (over Serial Ports or Telnet)
  • XML Configuration Records via CLI or FTP
  • DeviceInstaller software
  • Firmware: Upgradeable via FTP, Web, and Serial Port

Internal Web Server

  • Web content on local file system and updatable through FTP

Environmental

  • Operating Temperature: -40° to +85° C
  • Storage Temperature : -40° to +85° C
  • Relative Humidity: 0% to 90% non-condensing

Power

  • Input Voltage: 3.3VDC
  • IO Max Rating 3.3v

Regulatory Approvals

  • FCC Part 15, Subpart B, Class B
  • ICES-003 Issue 4 (2004), Class B
  • EN55022:2006 and EN55024:1998 + A1:2001 + A2:2003
  • AS/NZS CISPR22:2006
  • VCCI V-3/2009.04
  • EN 61000-3-2:2006, EN 61000-3-3:1995+A1:2001+A2:2005

Packaging

  • Dimensions: 33.9mm (L) x 16.25mm (W) x 13.5mm (H)
  • Weight: 9.6g

Warranty

  • 2-year limited Warranty

Warranty

XPort Pro Lx6 Downloads

Product Brief
xPort Pro Lx6 – Product Brief
401 KB
View
Certificates

Don’t see the certificate you need? Contact us to explore options and timelines for new certificates.

Certificate of Compliance- RoHS and REACH: SVHC XPort
117 KB
View
User Guides
xPort Pro Lx6 – User Guide Rev B
2 MB
View
xPort Pro Lx6 – Command Reference
897 KB
View
XPort Pro – Integration Guide
628 KB
View
XPort – Universal Demo Board Quick Start Guide
329 KB
View
XPort – Universal Demo Board User Guide
307 KB
View
Firmware Downloads

Keep your products up to date by downloading the latest firmware. You must log in or create a MyLantronix account to download firmware.

Product Notifications

You must log in or create a MyLantronix account to view product change notifications.

XPort Pro Lx6 Part Numbers

Lantronix Part # Name Description Order Now
Sorry, no parts were found that match that search query.
SKU
Lantronix Part #
XPP1004000-02R
Name
XPort Pro Lx6

RoHS Extended Temperature w/ IPv6
[SDRAM - 16 MB]
- Bulk (Min. Quantity 50 units)

 Contact Us
Lantronix Part #
XPP100400S-02R
Name
XPort Pro Lx6

RoHS Extended Temperature w/ IPv6
[SDRAM - 16 MB]
- Sample

 Buy Now
Lantronix Part #

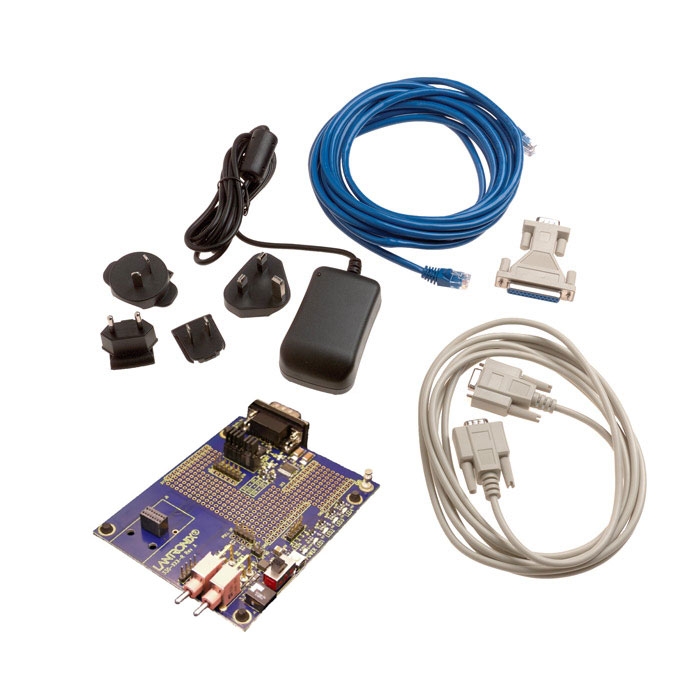

XP10010NMK-01 **
Name

Universal Demo Board
[SDRAM - n/a]
(More Information)
Module Not Included

 Buy Now
